Streaming live events requires a stable internet infrastructure, with sufficient speed and low latency. At Tera Rent, we have a wide range of solutions to bring internet everywhere.
Also, to those sites where there is already a connection, but the client is looking for security and redundancy.
With our multi-WAN routers, we can combine multiple 4G and 5G connections, as well as ethernet, fibre optics, or USB-WAN, creating a highly resilient VPN tunnel. We provide the best bonding and instant failover technology with the result of unbreakable connectivity on every scenario.
We can also apply bonding to Wi-Fi signals, for applications such as sending and receiving NDI/SRT signals from smartphones or video viewing on mobile devices.
Multi-WAN router . 4 Gbps throughput
1 x WAN 10G Ethernet – 1 x WAN 10G SFP+ – 2 x WAN USB C – WiFi as WAN
1 x 5G modem (Qualcomm X65). WiFi 7
Up to 8 WAN links available: 1 x 10G SFP+, 1 x 10G Ethernet, 2 x USB-C, 1 x 5G modem, 2.4 GHz WiFi , 5 GHz WiFi and VLAN WAN
Includes Speedfusion Connect bonding license and 1 SIM card with unlimited data (5G)

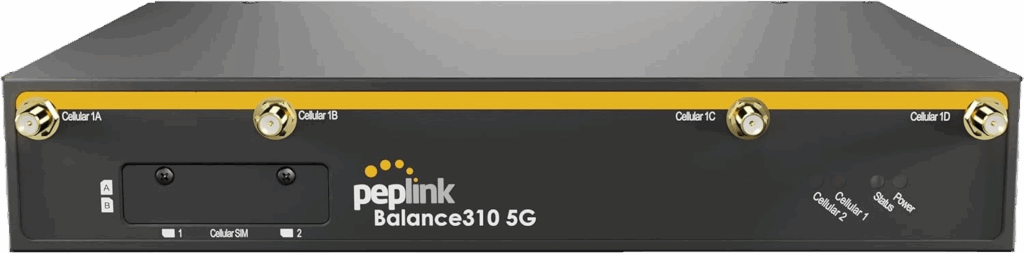

Multi-WAN router. 1 Gbps throughput
1 x 1 Gbps WAN port – 5 x 1 Gbps LAN ports – 2 x 1 Gbps LAN SFP ports – 1 x 1 Gbps USB WAN port
1 dual 5G modeom (Qualcomm X-55). 1 dual 4G LTE CAT 12 modem
Includes Speedfusion Connect bonding license and 2 SIM cards with unlimited data (5G + 4G).

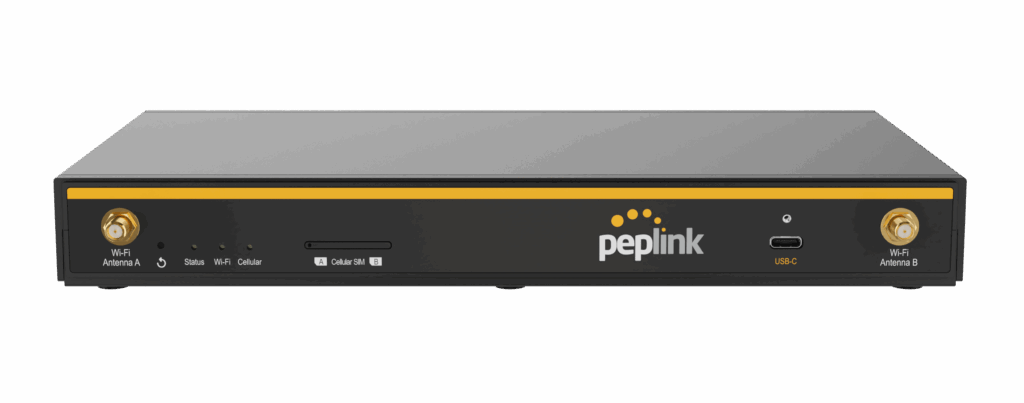

Multi-WAN router. 1 Gbps throughput
2 x 1 Gbps WAN ports – 4 x 1 GbpsLAN ports – 1 x 1 Gbps USB WAN port – 1 WiFi as WAN port
1 dual 5G modem, compatible with 4G LTE CAT-20 (Qualcomm X62). Built-in access point. WiFi 6.
Includes Speedfusion Connect bonding license and 1 SIM card with unlimited data (5G).
Multi-WAN router. 600 Mbps throughput
2 x 1 Gbps WAN ports – 3 x 1 Gbps LAN/WAN ports – 5 x 1 Gbps LAN ports – 1 x 1 Gbps USB WAN port
Includes Speedfusion Connect bonding license.
5G modem with Qualcomm X62 chip
Compatible with 5G SA / NSA and 4G LTE CAT-19
4 SMA antennas and USB-C jack
Includes 5G SIM card with unlimited data
Connectivity pack that includes a Starlink Mini + a Peplink MAX BR1 Pro 5G inside a high gain antenna
IP67 certified for indoors and outdoors use. Can be powered from any switch with just a PoE++ injector, no aditional power supply needed
The enclosure acts as a cellular, WiFi and GPS antenna
5G SIM with unlimited data is included, as well as a PoE++ inyector and rigging accesories
Starlink Standard 4, residential plan with 200 Mbps and unlimited data
Terrestrial coverage throughout Spain. Internet via Wi-Fi or cable.
Typical speeds according to Starlink:
Download: 80 to 200 Mbps
Upload: 15 to 35 Mbps
Includes portable battery, tripod/microphone stand and adapter, as well as power/Ethernet cables

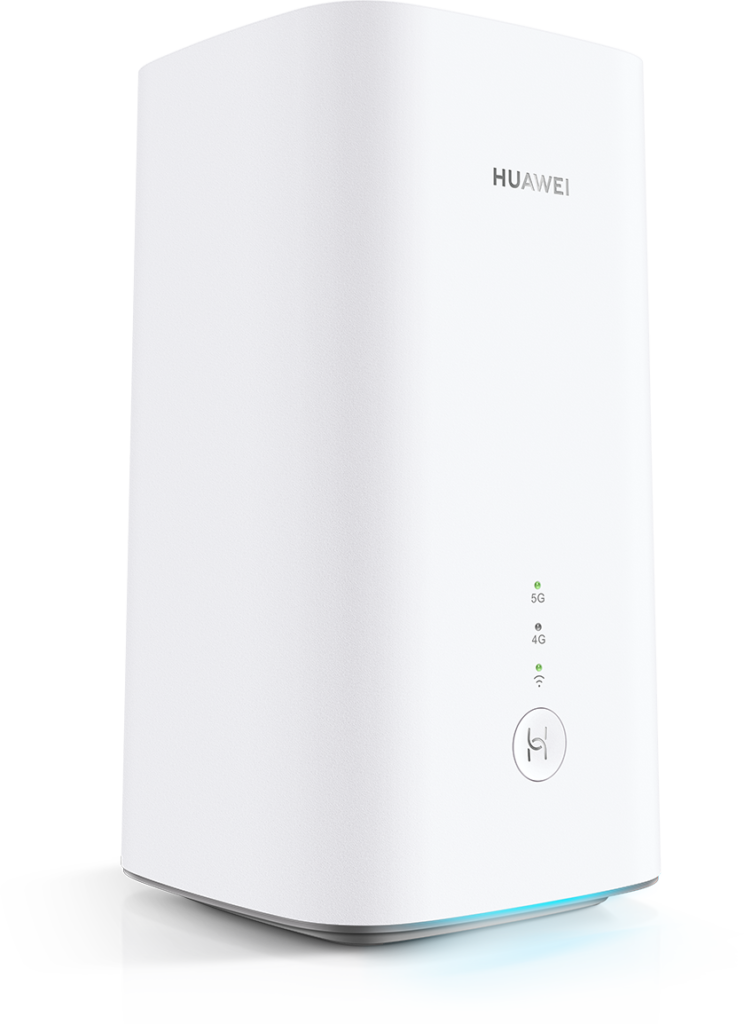

5G/4G wireless router
Wi-Fi 6, compatible with 802.11ax/ac/n/g/b/a – Dual band AP: 2.4 GHz & 5 GHz
1 x 2.5 Gbps WAN/LAN port, 2 x 1 Gbps LAN ports, 1 nano-SIM slot.
Includes 5G SIM card with unlimited data.
5G/4G wireless router
Wi-Fi 6, compatible with 802.11ac/n/g/b/a – Dual band AP: 2.4 GHz and 5 GHz
1 x 1 Gbps WAN/LAN port, 1 x 1 Gbps LAN port, 1 nano-SIM slot.
Includes 5G SIM card with unlimited data.

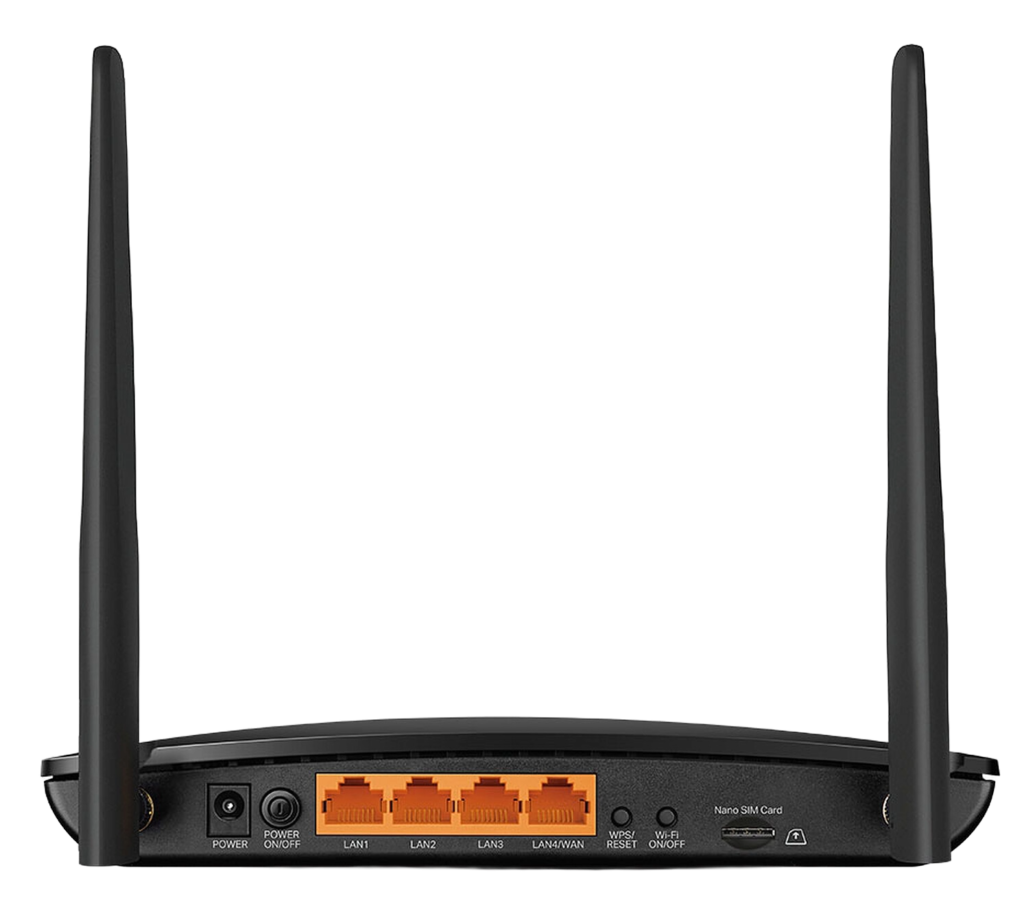

4G+ LTE wireless router
2.4 GHz and 5 GHz WiFi wireless access point
1 x 1 Gbps LAN/WAN port. 3 x 1 Gbps LAN ports. 1 micro SIM slot.
Includes 4G SIM card with unlimited data.

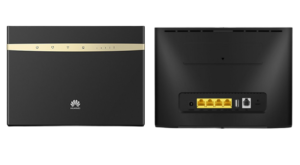

4G+ LTE wireless router
2.4 GHz and 5 GHz WiFi wireless access point
1 x 1 Gbps LAN/WAN port. 3 x 1 Gbps LAN ports. 1 micro SIM slot.
Includes 4G SIM card with unlimited data.

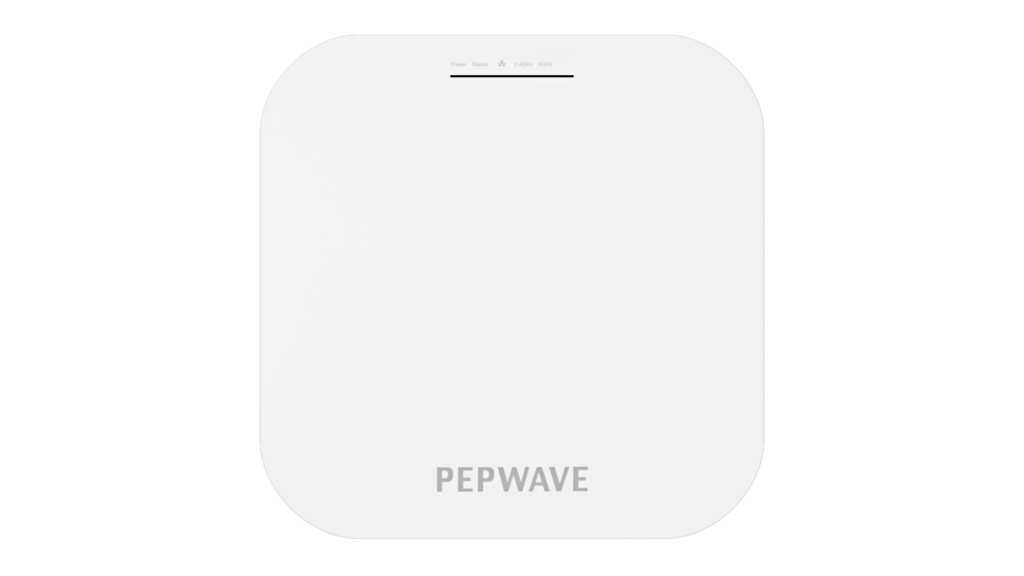

WiFi MU-MiMo 4×4 access point. Ethernet 2.5 Gbps WAN/LAN port.
Up to 256 concurrent users
1 x 2,4 GHz 802.11 b/g/n/ax
1 x 5 GHz 802.11 a/n/ac/ax

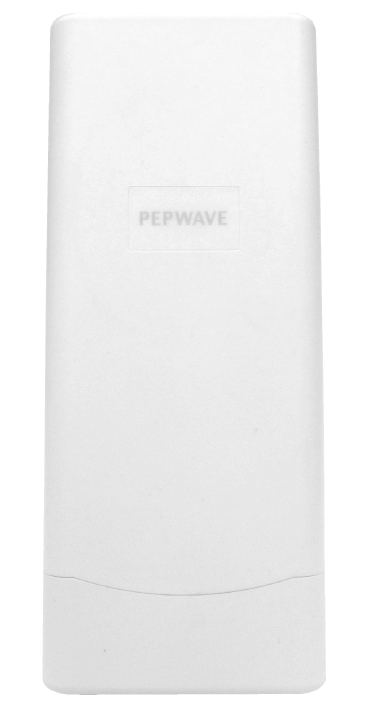

WiFi access point compatible with 802.11ac/a/b/g/n standards
MU-MiMo 2×2. 1 WAN port (POE) – 2 LAN ports
Simultaneous broadcast on 2.4 GHz and 5 GHz. Output power: 26 dBm
16 SSID per radio.

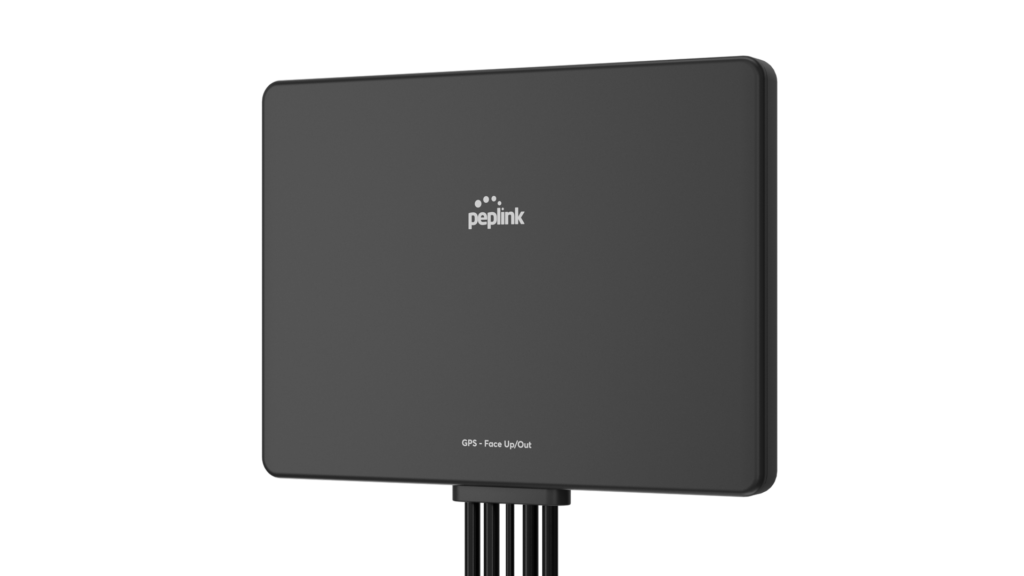

LTE / 5G MiMo 4×4 antenna. + GPS. Bandwidth 600-6000 MHz
3.6 dBi @ 617-960 MHz, 6.1 dBi @ 1710-2700 MHz, 6.7 dBi @ 3400-4200 MHz, 8.1 dBi @ 5000-6000 MHz.
12-port non-blocking managed switch. 2.5 Gbps per port
12 RJ45 2.5 Gbps ports + 2 SFP+ 10 Gbps ports
Total bandwidth: 100 Gbps.
Templates for Dante, NDI, AES67, QSYS etc
12-port non-blocking managed Gigabit switch.
8 RJ45 1 Gbps PoE+ ports (125 W maximum PoE budget). 2 RJ45 1 Gbps ports. 2 SFP 1 Gbps ports
Total bandwidth: 24 Gbps.
Templates for Dante, NDI, AES67, QSYS etc

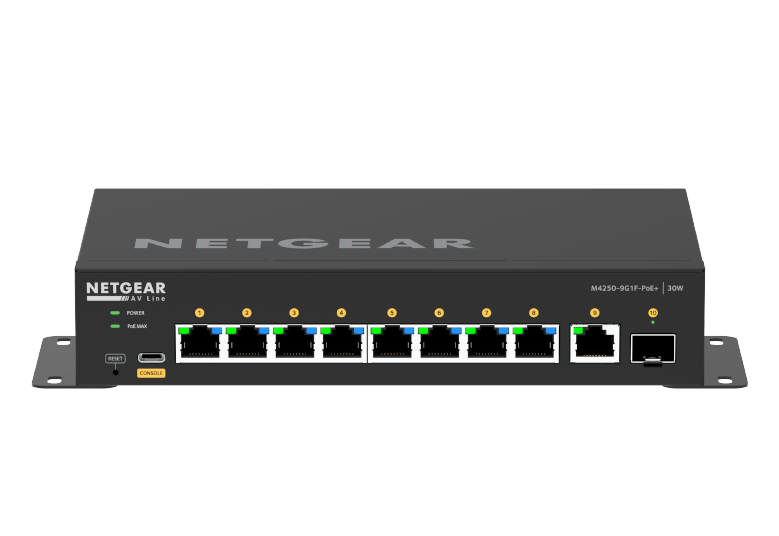

10-port non-blocking managed Gigabit switch
8 RJ45 1 Gbps PoE+ ports (110 W. maximum). 1 RJ45 1 Gbps port. 1 SFP 1 Gbps port
Total bandwidth: 20 Gbps.
Templates for Dante, NDI, AES67, QSYS etc

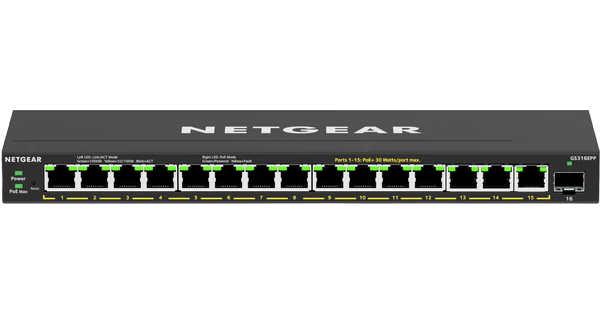

Managed Gigabit switch.
15 RJ45 1 Gbps PoE+ ports. 1 SFP 1 Gbps port. Max PoE budget = 180 W
Total bandwidth: 16 Gbps.
VLAN and QoS

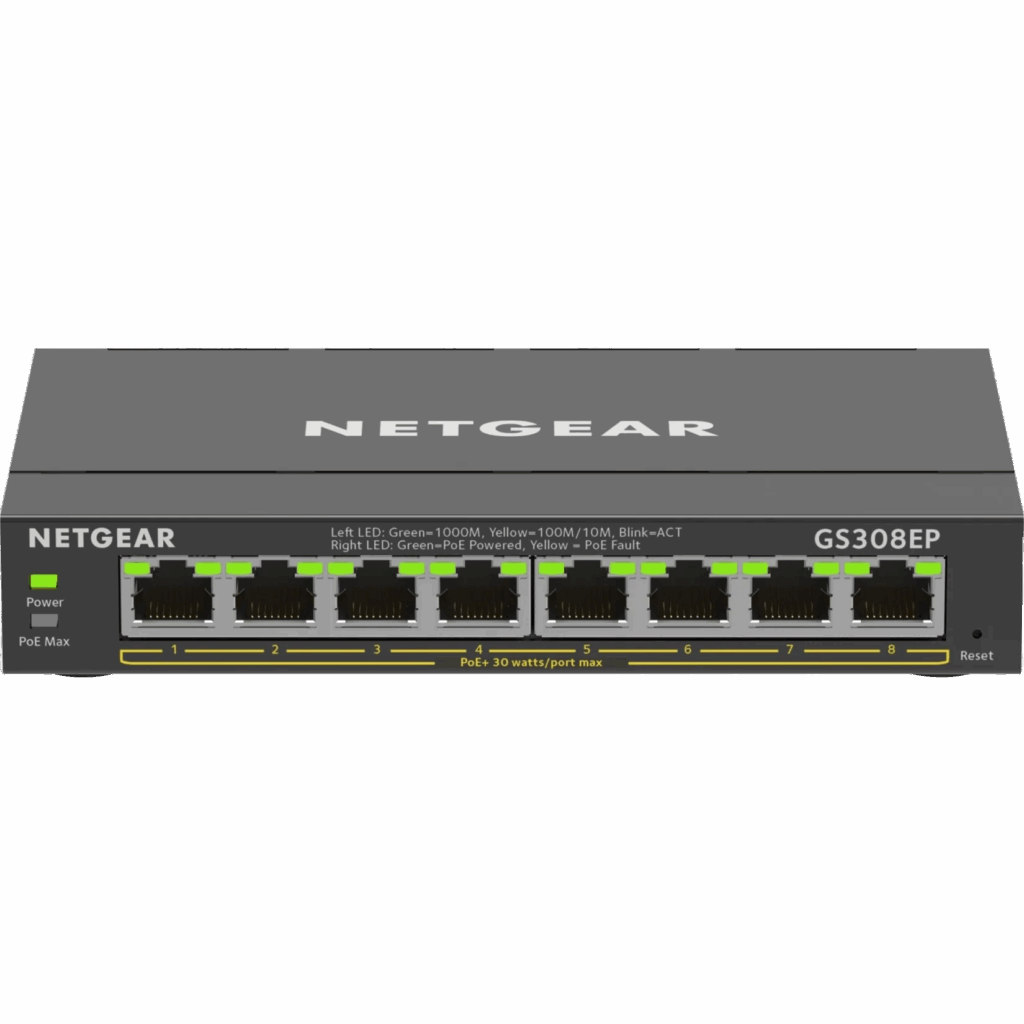

Managed Gigabit switch.
8 RJ45 1 Gbps PoE+ ports. Max PoE budget = 123 W.
Total bandwidth: 16 Gbps.
VLAN and QoS
Managed Gigabit switch. 24 RJ45 ports and 4 SFP slots.
Unmanaged Gigabit switches with 8 and 5 RJ45 ports.
